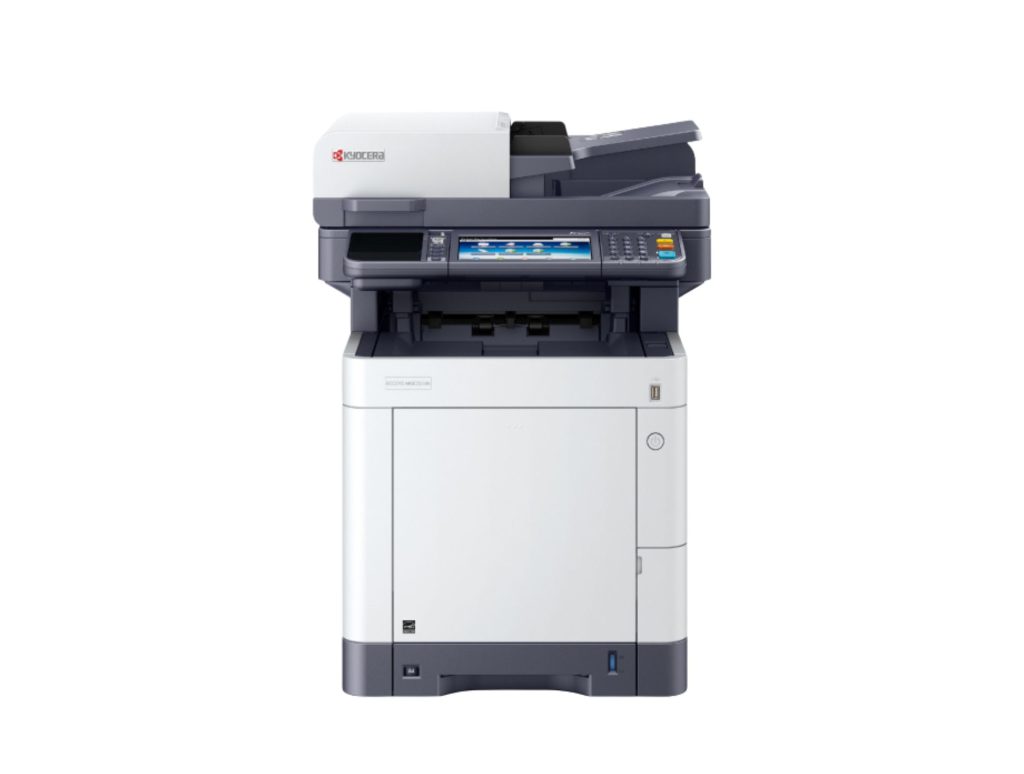

This new A4 colour MFP is designed specifically for medium and large-sized work groups, offering both reliability and fast output speeds in both colour and b/w and now complying with the newest environmental standards. The convenient touch panels provide simple, direct access to the multifunctionals’ numerous functions. What’s more, dedicated program keys and KYOCERA’s open solution platform HyPAS can help further optimize your document workflow. And for your bottom line it offers you an attractive TCO.
| Input capacity | 100-sheet multi-purpose tray, 60–220 g/m², A4, A5, A6, B5, Letter, Legal, Folio, Envelopes, Custom (70 x 148 to 216 x 356 mm), 250-sheet standard universal paper cassette, 60–163 g/m², A4, A5, A6, B5, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm) |
| Max. input capacity with options | 1,850 sheets |
| Duplex unit | Duplex as standard supports 60-163 g/m²; A4, A5, B5, Letter, Legal |
| Max. output capacity | 250 sheets face-down with paper full sensor |
| Document processor | Reversing: 75-sheet, 50-120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 mm to 216 x 356 mm) |
| General paper handling | All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions. |
| Name | Description |
| TK-5275K | Average continuous black toner yield 8,000 pages in accordance with ISO /IEC 19798. Average continuous black toner yield 3,500 pages in accordance with ISO /IEC 19798 (starter toner) |
| TK-5275C | Average continuous cyan toner yield 6,000 pages in accordance with ISO /IEC 19798. Average continuous cyan toner yield 2,500 pages in accordance with ISO /IEC 19798 (starter toner) |
| TK-5275M | Average continuous magenta toner yield 6,000 pages in accordance with ISO /IEC 19798. Average continuous magenta toner yield 2,500 pages in accordance with ISO /IEC 19798 (starter toner) |
| TK-5275Y | Average continuous yellow toner yield 6,000 pages in accordance with ISO /IEC 19798. Average continuous yellow toner yield 2,500 pages in accordance with ISO /IEC 19798 (starter toner) |
| Name | Description |
| MMDR3-1024 | 1,024 MB RAM Expansion |
| MDDR3-2GB | 2,048 MB RAM Expansion |
| HD-6 | 32 GB SSD hard disc for easy document management |
| HD-7 | 128 GB SSD hard disc for easy document management |
| Data Security Kit (E) AC | In line with ISO 15408 (Common Criteria) with security level EAL3. Only 4in1 MFP-models carry official CC-Certification |
| IB-36 | Wireless LAN (802.11b/g/n) with Wi-Fi Direct |
| IB-50 | Gigabit-Ethernet board 10BaseT/100BaseTX/ 1000BaseT |
| USB IC Card Reader + Card Authentication Kit (B) | Support for various authentication keys available |
| Scan extension Kit (A) AC | Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HD-6, HD-7 or SD-card is needed |
| Card Reader Holder 10 | To integrate the USB IC Card Reader |
| UG-33 | ThinPrint support |
| PCL Barcode SD | Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B) |
| Card Authentication Kit (B) | Support for various authentication keys available |
| Name | Type | Paper | Max. capacity |
| PF-5100 | Paper Feeder | 60–220 g/m2; A4, A5, A6, B5, Letter, Legal, Custom (148 x 210 mm–216 x 356 mm) | 500 sheets |
| MS-5100 | Convenient Stapler | Semi automatic stapler: on the front side, one corner stapling, (1,500 staples included) | 20 sheets |
| SH-13 | Stapler cartridge | for MS-5100 (2 x 1,500 staples included) |
| General type | Colour Multifunctional for A4 format |
| Technology | KYOCERA ECOSYS, Colour Laser |
| Engine speed | Up to 30 pages A4 per minute in colour and b/w |
| Resolution | 1,200 x 1,200 dpi (print), 600 x 600 dpi(scan/copy) |
| Warm-up time | Approx. 26 seconds or less |
| Time to first print | Approx. 6.5/7.5 seconds or less in b/w / colour |
| Time to first copy | Approx. 8.5/10 seconds or less in b/w / colour |
| Dimensions (W x D x H) | 475 x 558 x 616 mm |
| Weight | Approx. 35.4 kg including toner container |
| Power consumption | Printing: 496W, Copying: 521W, Ready mode: 70W, Sleep mode: 0.6W |
| Power source | AC 220 ~ 240 V, 50/60 Hz |
| Noise (ISO 7779) | Noise (Sound pressure level: ISO 7779 / ISO 9296) Copy / Print in colour: 49.5 dB(A) LpA, Quiet mode in colour: 46.6 dB(A) LpA, Sleep-mode: Immeasurable low |
| Safety standards | TUV/GS, CE – This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard. |
| General memory | Standard 1024 MB, Max. 2048 MB |
| Standard interface | USB 2.0 (Hi-Speed), 2 x USB Host Interface, Gigabit Ethernet (10BaseT/100BaseTX/1000BaseT, IPv6, IPv4, IPSec, 802.3az support), optional Wi-Fi (IEEE 802.11b/g/n), 1 eKUIO slot for optional internal print server, Slot for optional SD Card |
| Input capacity | 100-sheet multi-purpose tray, 60–220 g/m², A4, A5, A6, B5, Letter, Legal, Folio, Envelopes, Custom (70 x 148 to 216 x 356 mm), 250-sheet standard universal paper cassette, 60–163 g/m², A4, A5, A6, B5, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm) |
| Max. input capacity with options | 1,850 sheets |
| Duplex unit | Duplex as standard supports 60-163 g/m²; A4, A5, B5, Letter, Legal |
| Max. output capacity | 250 sheets face-down with paper full sensor |
| Document processor | Reversing: 75-sheet, 50-120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 mm to 216 x 356 mm) |
| General paper handling | All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions. |
| Processor | Cortex A9, Dual core 1.2 GHz |
| Controller language | PRESCRIBE IIc |
| Emulations | PCL 6 (5c/XL), KPDL 3 (PostScript 3 compatible), PDF Direct Print, XPS Direct Print |
| Fonts | 93 outline fonts (PCL 6, KPDL3) + 8 fonts (Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417) |
| Integrated Accounting | 100 department codes |
| Features | Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality |
| Protocol | Mobile printing support: KYOCERA Mobile Print app for iOS and Android, Airprint, Mopria, WIFI direct |
| Applicable OS | All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux |
| Max. original size | A4/Legal |
| Digital copy features | Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, job reserve, priority print, program, auto duplex copy, continuous scan, auto cassette change, copy density control, skip blank page |
| Exposure modes | Auto, manual: 9 steps |
| Preset magnification ratios | 7 Reductions/5 Enlargements |
| Zoom range | 25 – 400 % in 1% steps |
| Continuous copy | 1 – 999 |
| Image adjustments | Text + Photo, Photo, Text, Map, Printed document |
| Compression format | MMR/JPEG |
| File type | TIFF, PDF, PDF/A, JPG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required) |
| Scan features | Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Skip blank page |
| Original recognition | Text, photo, text + photo, light text, optimized for OCR |
| Max. scan size | A4 / legal |
| Scan functionalities | Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan |
| Scan resolution | 600, 400, 300, 200 dpi (256 grey scales per colour) |
| Scan speed | 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4 colour), 26 ipm (300 dpi, A4, b/w) (Duplex), 17 ipm (300 dpi, A4 colour) (Duplex) |
| Compatibility | ITU-T Super G3 |
| Modem speed | Max. 33.6 kbps |
| Scanning speed | 2 seconds or less |
| Transmission speed | 3 seconds or less |
| Scanning density | Normal: 200 x 100 dpi, Fine: 200 x 200 dpi, Superfine: 200 x 400 dpi, Ultrafine: 400 x 400 dpi, Halftone: 256 greyscales |
| Max. original size | A4 / legal |
| Compression method | JBIG, MMR, MR, MH |
| Fax features | Network faxing, Duplex transmission and reception, Encrypted transmission and reception, Polling transmission and reception, Broadcast |
