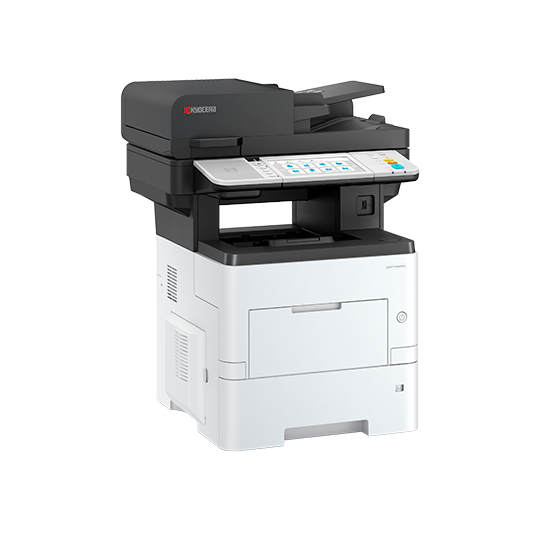

The ECOSYS PA6000x delivers an exceptional high-speed printing of up to 60 pages per minute and a first print time of 4.5 seconds, that guarantee efficient and reliable operation in a vibrant professional work environment. The low level of total cost of ownership and intelligent security features provide more than you expect.
| Toner Kit (Page Yield in accordance with ISO/IEC 19752) | TK-3445: 40,000 pages |
| Capacity of Start up Toner | 11,000 pages |
| Maintenance Kit | MK-3385 (500,000 pages); DP:MK-5200 (200,000 pages) |
| Paper Feeder | PF-3110: 500 sheets (Max. x4) |
| Face Up Tray | PT-320: 250 sheets Face Up Tray |
| Manual Stapler | MS-5100 B; Staple for MS-5100 B: SH-13 |
| Card Authentication | Card Authentication Kit(B) |
| Gigabit Ethernet Board | IB-50 |
| Wireless LAN Interface | IB-37: 802.11 b/g/n/a Wireless LAN/WiFi Direct* (WiFi Direct is for IB-37 only) |
| Storage Device | HD-17: SSD 64GB; HD-18: SSD 256GB, HD-19: 512GB SSD |
| Embedded OCR | Scan Extension Kit(A) |
| UG-50 | TPM (Trusted Platform Module) |
| Main Function | Copy, Print, Scan, Fax |
| Writing Method | Laser exposure dry electrostatic transcription method / Desktop |
| CPU | ARM Cortex-A53 Dual core 1.4GHz |
| Memory | Standard 1.5GB; Max. 3.5GB (optional) |
| Warm Up Time | Approx. 25 seconds or less |
| Paper Capacity, Standard | 500 sheets x 1 (Cassette) + 100 sheets (MPT) |
| Paper Capacity, Maximum | 2,600 sheets (Main Unit + 500 sheets PF-3110 x4 + MPT) |
| Paper Size, Cassette | Max. A4 (Legal) – Min. A6R |
| Paper Size, Option | Max. A4 (Legal) – Min. A5R |
| Paper Size, MPT | Max. A4 (Legal) – Min. 70mm x 148mm & banner paper: Max 915mm |
| Paper Weight, Cassette | 60 – 120 g/m² |
| Paper Weight, MPT | 60 – 220 g/m² |
| Duplex Printing | Paper size: A4/Legal – A5R; Paper weight: 60 – 120 g/m² |
| Output Capacity | Max. 500 sheets face-down |
| Control Panel | 7 inch Color Touch LCD Panel |
| Document Processor | Standard (Max. 100 sheets DSDP Type) |
| Data Security | Data Security Kit (E) Free activation when using HD-6 and HD-7 |
| Dimension (W x D x H) (Main Unit) | 480mm x 495mm x 610mm |
| Weight (Main Unit) | Approx. 24.5 kg (Excluding toner) |
| Power Consumption (Standard configuration), Copy/Print Mode | 742W / 740.8W |
| Power Consumption (Standard configuration), Stand-by Mode | 57.9W |
| Power Consumption (Standard configuration), Energy Saver | 0.5W |
| Noise (ISO7779/ ISO9296), Copy/Print Mode | 58dB(A); Silent mode: 53dB(A) |
| Noise (ISO7779/ ISO9296), Stand-by Mode | 33dB(A) |
| Resolution | 600 x 600 dpi, Fast 1200, Fine 1200 |
| PDL | PCL6 (PCL5e, PCL-XL), KPDL3 (Postscript 3 compatible), XPS, Open XPS |
| First Print Out Time | 4.5 seconds or less |
| Supported Protocol | NetBEUI, FTP, Port 9100, LPR, IPP, IPP over SSL, WSD Print, Apple Bonjour |
| Operating System | All current Windows operating systems, Mac OS X Version 10.5 or higher, UNIX, X |
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1000BASE-T; USB Host Interface (USB Host)x2 |
| USB Memory Printing / Format | Standard / TIFF, JPEG, PDF, XPS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print |
| Copy Speed (A4) Mono | 60 ppm |
| Copy Size | Max. A4 (Legal) – Min. A6R |
| Resolution | 600dpi x 600dpi |
| First Copy Time | 6.0 seconds or less (with DP) 7.0 seconds or less (without DP) |
| Zoom Ratio (Manual) | 25% to 400% (1% per Step) |
| Multiple Copy | 1 to 999 |
| Scanning Speed (A4) 300dpi, Simplex (Mono/Color) | 60/40 ipm |
| Scanning Speed (A4) 300dpi, Duplex (Mono/Color) | 120/80 ipm |
| Color Selection | ACS; Full Color; Grayscale; Black & White |
| Resolution | 600dpi, 400dpi, 300dpi, 200dpi, 200x400dpi, 200x100dpi |
| File Format | TIFF, JPEG, XPS, Open XPS, PDF/A, PDF (MMR/JPG/High-compression PDF), Encryption PDF |
| Image Type Mode | Text, Photo, Text + Photo |
| Transmission Type | Scan to SMB Scan to E-mail Scan to FTP or FTP over SSL Scan to USB TWAIN Scan WSD Scan WIA Scan |
| Address Storage | 200 addresses (Common address list), 50 groups (Group address list) |
| Original Size | Max. A4 (Legal) – Min. A6 |
| Coding Method | MMR, MR, MH, JBIG |
| Transmission Speed | 33.6 kbps |
| Memory | 3.5MB |
| One Touch Dial | 100 numbers |
| Network FAX | Yes |
